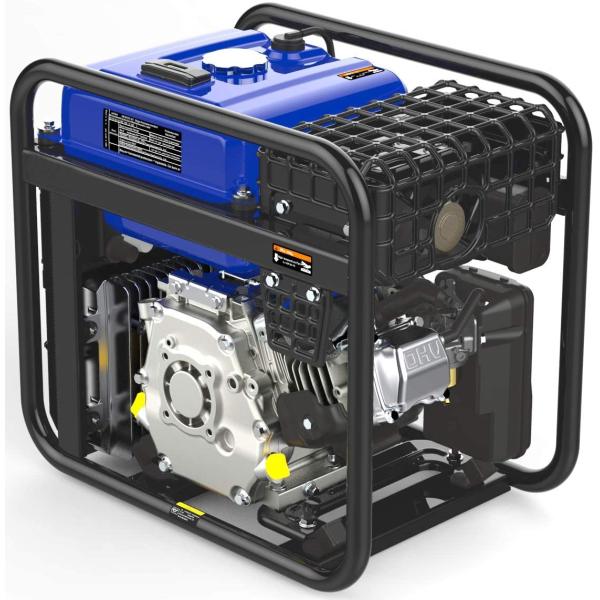

Characteristics
1. Can be used for welding and power generation, can continuous weld Ȼ1.6--Ȼ4.0 electrodes, and rated output AC 3.6kW/240V/50Hz auxiliary power.
2. Adopt digital inverter control technology, excellent welding performance
3. Medieum frequency permanent magnet generator,90% generating efficiency
4. Small size, only 38kg, easy movement.
Application
1.Maintenance and repair of highway guardrails and power facilities,
3.Maintenance of fences & agricultural equipment in pastures and farms,
4.Supply power to small electric tools in the field without power supply: angle grinder, sander, electric drill, water pump, lighting equipment, etc.
5.Welding of stainless steel and carbon steel materials
6.House emergency power supply
| Main specification sheet |
| Welding | Welding type | Inverter welding |
| Open circuit voltage (V) | 60 |
| Current adjustment range | 40～150 |
| Welding current (A) | 150 | 150 |
| Welding voltage (V) | 27.6 | 26 |
| Duty Cycle | 60% | 100% |
| Generator | Rated output power | 3.6KW |
| Max. output power | 4.0KW |
| Rated output voltage | 240VAC |
| Rated output current | 13A |
| Frequency | 50/60Hz |
| Power factor | 1 |
| Engine | type | GB270B-2 |
| Valve layout | OHV |
| Displacement | 272cc |
| Type of ignition system | TCI |
| Start method | Pull start |
| Oil volume | 1.0L |
| Whole set | Cooling method | Forced air |
| Dimension.(mm) | 530×348×490 |
| Fuel volume | 9.6L |
| Weight (net) | 38Kg |
| Protection/Insulation class | IP23/F |
| Quotation:USD800/set FOB Shanghai,mini order:10 sets |
| Warranty:1 year |
| Payment term:30% T/T advance, balance paid off before shipment. |
| Delivery term:30 days after received 30% prepayment. |
| This quotation is based exchange rate 6.5 |
