1500W Handheld Laser Welding Machine

  • 1
  • 2

Brand Name : GENWELD

Model Number : LW-G1500W

MOQ : 10

Payment Terms : MoneyGram

watt : 1500W

name : Handheld Laser Welding Machine

Power adjustment range : 10%-100%

Working mode : continuous/modulation

Laser wavelength : 1080nm

Modulation frequency : 20KHZ

Contact Now

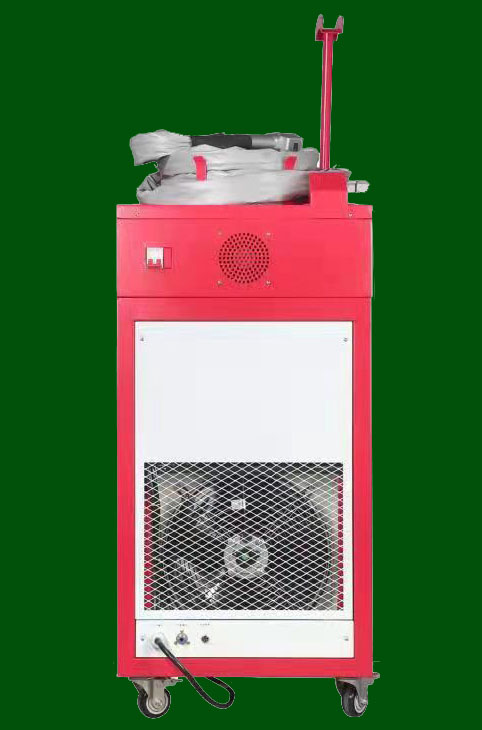

The LW-G1500W handheld laser welding machine consists of a laser unit and a welding unit. It replaces the previous fixed optical path, is flexible and convenient, and has a longer welding distance. It implements flexible non-contact welding on hard-to-access parts, achieving high efficiency, high precision, and high performance.

It is mainly used for welding large workpieces with fixed positions such as inner right angles, outer right angles, and plane welds. The heat affected area during welding is small, the deformation is small, the penetration depth is large, and the welding is firm.

Equipment overview
Rated input power Three-phase 220V±5%/50Hz
Output power 1500W
Power adjustment range 10%-100%
Power stability ≤±3%
Continuous working time 24 hours
Working mode: continuous/modulation
Environmental requirements Temperature 5-40℃, humidity 10-90%
Laser wavelength 1080nm
Modulation frequency 20KHZ
Cooling method Water cooling (dual temperature and dual control)
Speed ​​ of light output 1 beam
Focus focal length 200mm
Collimation focal length 100mm
Minimum focus diameter D20 (≤0.4MM)
Welding head with coaxial shielding gas machine swing function
Automatic wire filler special for laser welding can be matched
Maximum power consumption 5.5KW
Water chiller parameters
Power supply system 220V±5%, 50Hz 40A
Cooling water flow 8L/min
Chiller ruler 600*1050*1210
Cooling capacity 5200W

1500W Handheld Laser Welding Machine

1500W Handheld Laser Welding Machine
